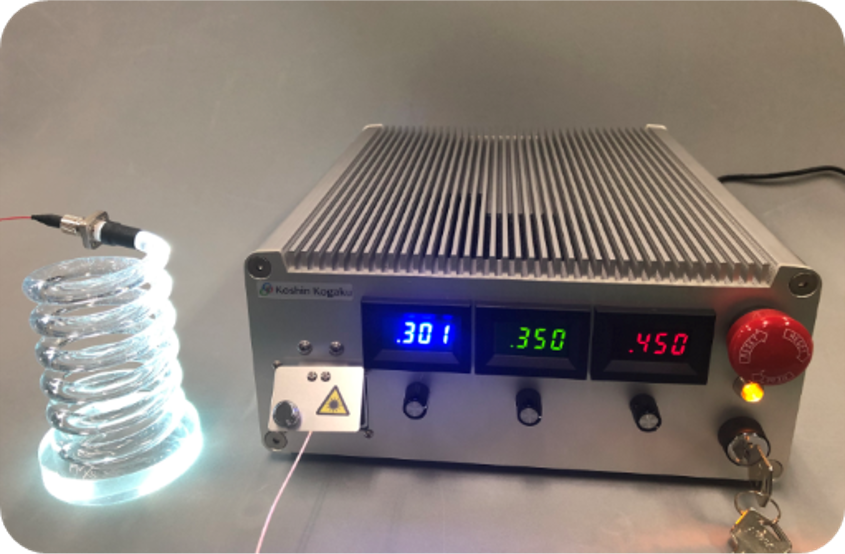

Fiber Output Multi-wavelength Laser Source

Capable of output from fibres with high coupling efficiency
⇒ Coupling efficiency of 80% or more

Compatible with various wavelengths
⇒405nm, 473nm, 670nm, 808nm, 830nm, etc.
Select any 1 to 3 wavelengths and output from a single fibre.
For other wavelengths, please inquire us.


Customised for various applications
⇒Customised support for your use.



Specifications



Sample specification

Wavelength (changeable)

448 nm 520 nm 635 nm

Optical Output (changeable)

2400 mW 780 mW 570 mW

Coupling Efficiency

(depends on LD)

90.7% 91.0% 80.5%
Fiber  SI MMF(core:200 μm) NA:0.22
Connector FC connector
Power Control ACC
Power supply

AC 90-246 V

Interface

USB
Laser Class Class 4
Size W230×D270×H100 mm

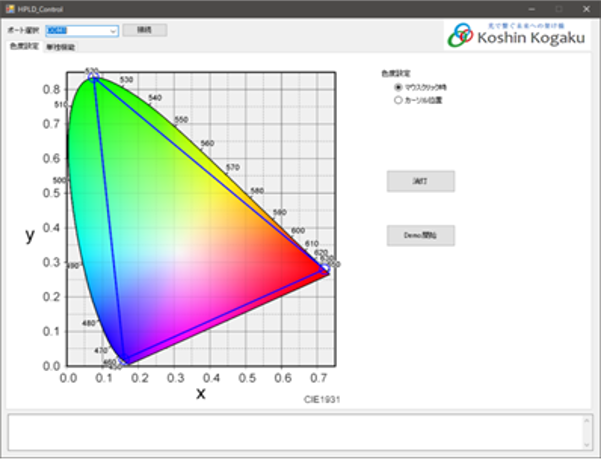

The output light of the LD module can be controlled by a Windows PC according to the colour on the chromaticity diagram.

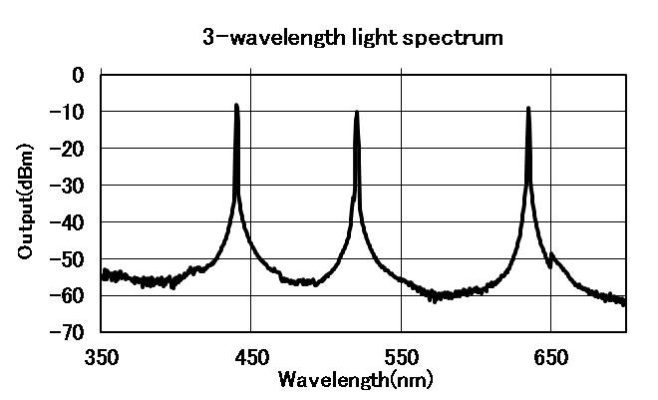

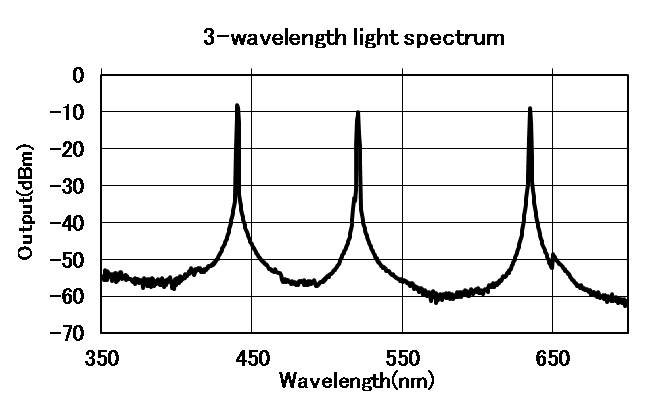

*Measurements are made with the optical output attenuated due to the limitations of the measuring instrument.
*Ripple at 650 nm is caused by the measuring instrument.
