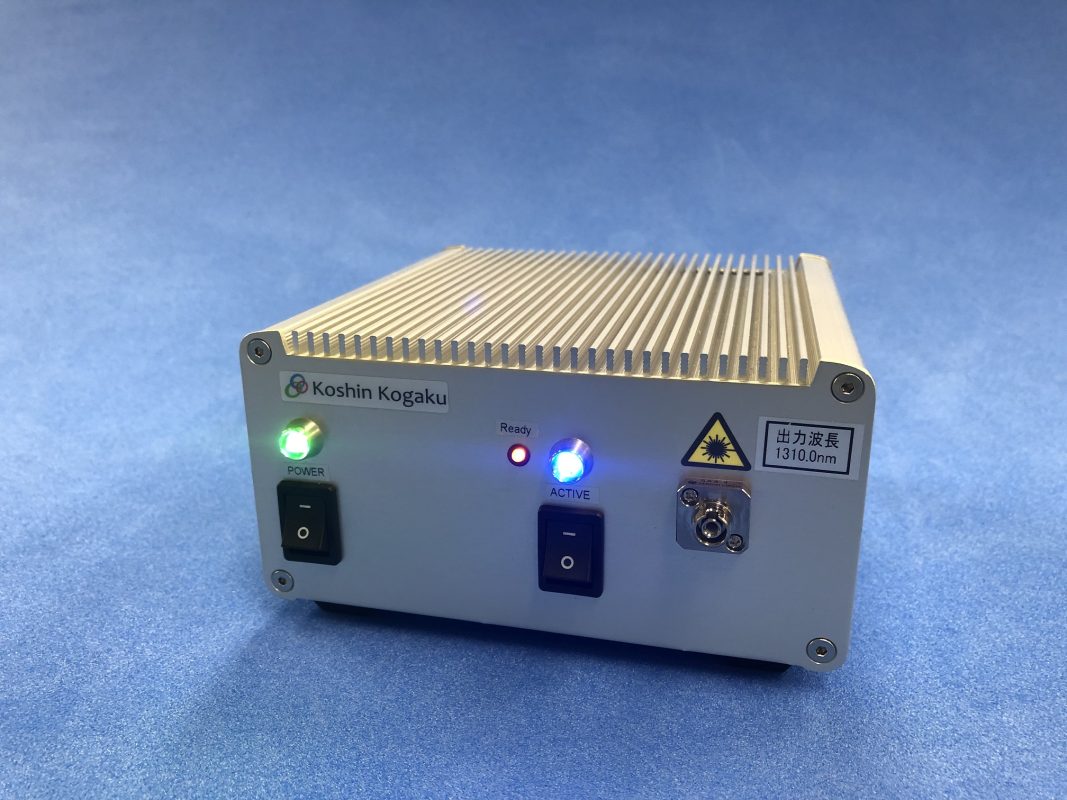

Fixed Wavelength Semiconductor Lasers【FLS】

Fixed Wavelength Semiconducto Lasers FLS Specifications

Model FLS-**** (Specified wavelength)
Setting wavelength range
1180-1370nm/1400-1680nm
※Please specify a necessary wavelength
Wavelength accuracy
≦±0.2nm
Optical output power※1
≧+10dBm
Spectrum linewidth(Typ.)※2,※4
≦30kHz (Min.:≦10kHz)
RIN(Typ.)※2
≦-150dB/Hz
Frequency stability※3
≦±100MHz (60min.)=±0.8pm(Wavelength stability)
Optical output power stability※3
≦±0.03dB (60min.)
Output optical fiber
Polarization Maintaining Fiber
※Optical connectors are selectable.
Polarization
Linear polarization, aligned to connector key, Extinction ratio≧20dB(Typ.)
External I/F Serial
Dimensions
141W×137D×71H

<Contents are subject to change without notice.>
※1: Max. output power changes depending on the model/center wavelength.
※2: when a low noise driver is used.
※3: in the constant environment
※4: changes depending on wavelength.
