VTFM/FC：Visible Light Wavelength Tunable Filter with Exchangeable Filter
Visible Light Wavelength Tunable Filter with Exchangeable Filter (VTFM/FC)
TFM/FC contains an optical filter mounted on a cassette. By exchanging the cassette, TFM can change its spectral characteristics including the tunable wavelenth range. This type TFM can tuning visible ligth wavelength.
Please inquire us.
Specifications
| Wavelength range | 480-850 nm (CWL ±40 nm) |
|---|---|
| Tuning range | 10 nm |
| Filter type | BPF, LPF, SPF, etc. are available. |
| FWHM | > 1 nm |
| IL(dB) of TFM | ≦ 2.5dB |
| IL(dB) of FC | ≦ 1.5dB |
| Optical Output | 1 W (higt power type) |
| Fiber | PM460/ PM630, etc. are available. |
| Connector/Polish | FC/SPC(STD) |
| Size | W60×D46.5×H40 mm |
※Contents are subject to change without any notice.
※Main unit(TFM) and filter cassette(FC) are available individually.

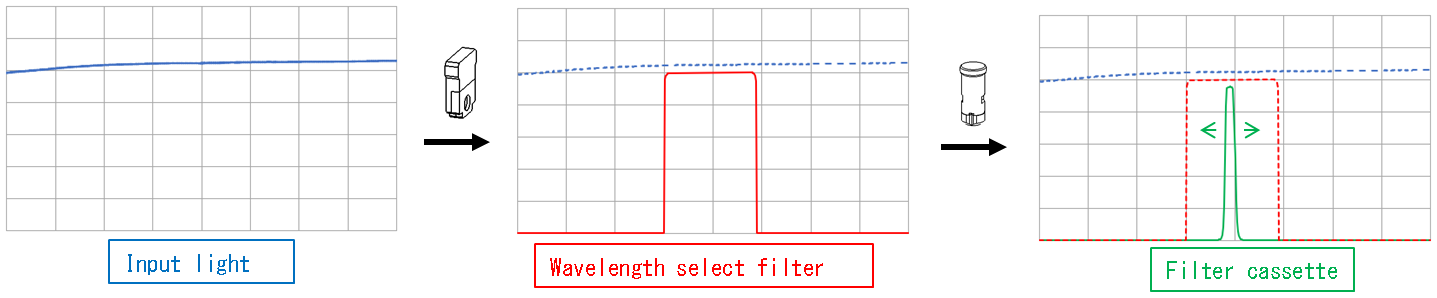

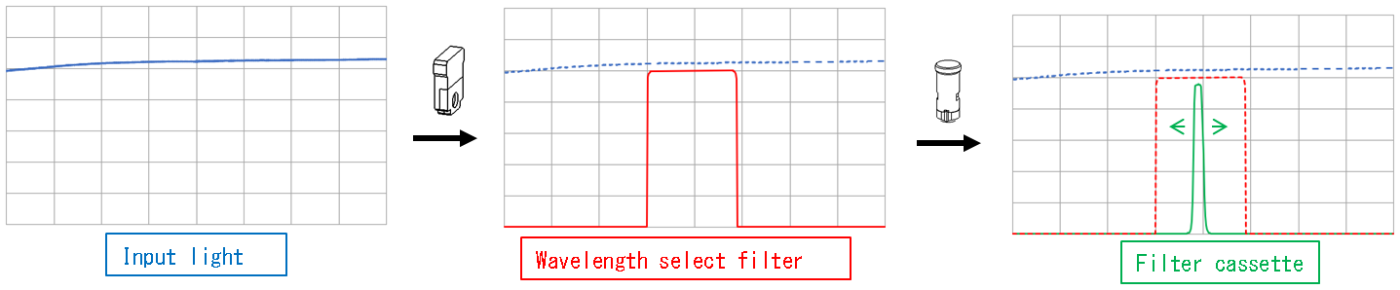

Applications
- Combining TFM with light source.
- Selection filter takes out some of the required wavelength.
- FC can tuning the wavelength by 10 nm.
