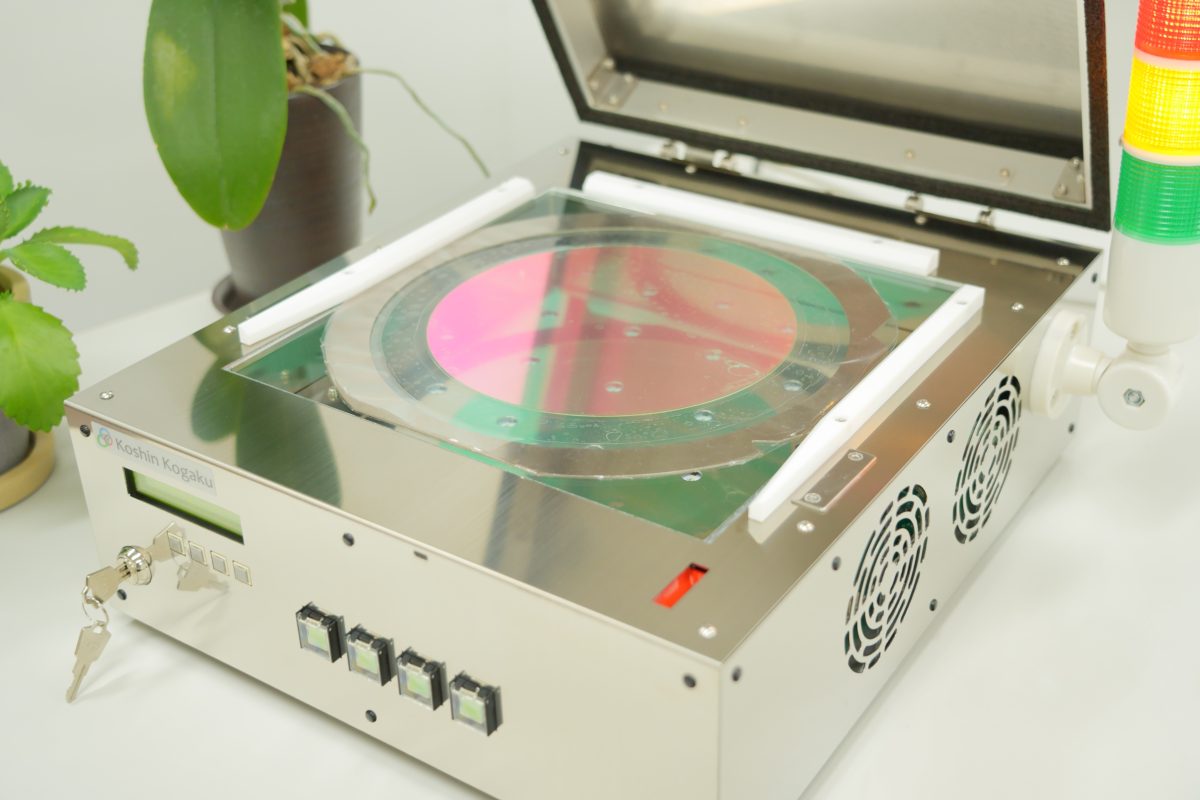

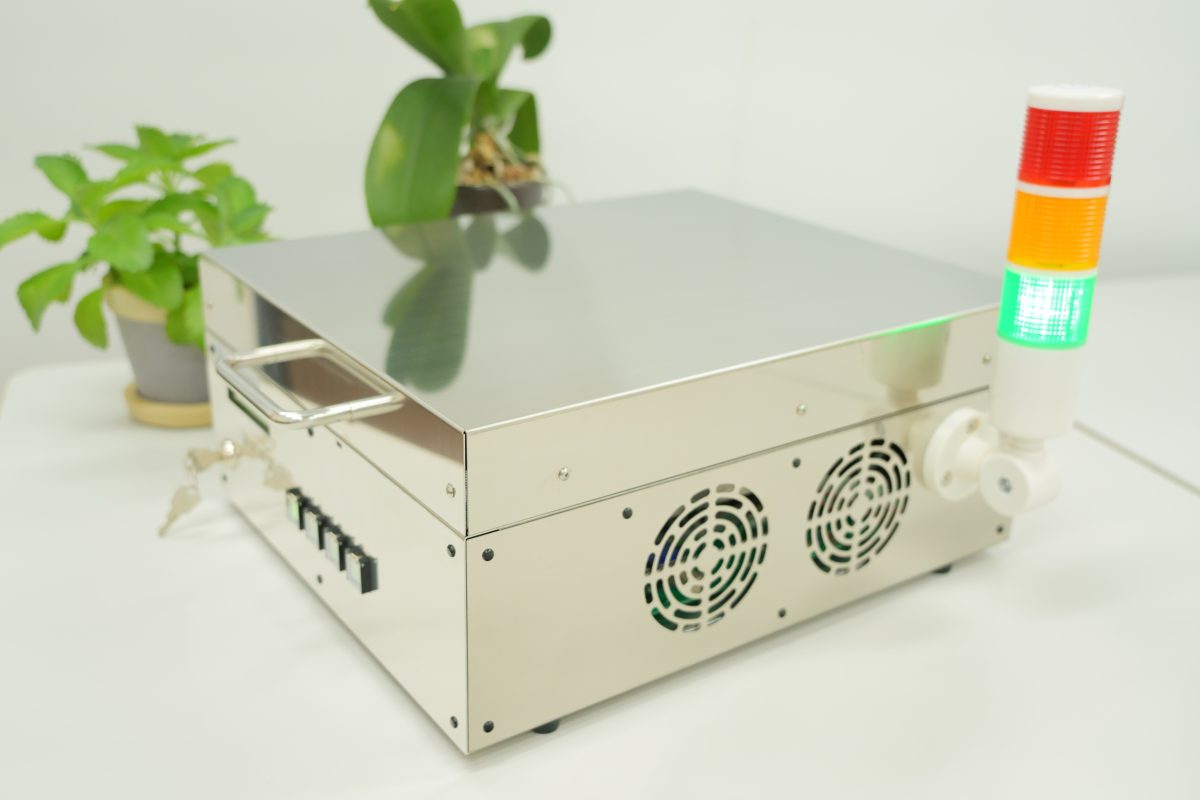

Desktop UV-LED Cure Chamber (Desktop UV Irradiator)

Engineered for precision and efficiency, our desktop UV-LED curing system delivers reliable UV irradiation in a compact, safe, and energy-efficient package.

Key Features

• Lightweight & Compact Design

 With its simple design, it is ultra-lightweight and easy to carry. Its compact size makes it an ideal desktop solution for any laboratory or production environment.

• Cost-Effective Solution

 Focused on essential core functions to minimize costs without compromising high performance and quality.

• Safety & Peace of Mind

 Equipped with a highly visible signal tower (traffic light indicator) to continuously display operating status, effectively preventing operational errors and accidents.

• Energy-Efficient LED Technology

 Utilizes an advanced LED light source, dramatically reducing power consumption compared to conventional UV lamps.



Applications

Specifically designed for UV irradiation of UV-curable dicing tapes used in holding and protecting various substrates, including:

• Ceramics, Glass, Sapphire, Semiconductor Wafers etc.

Please inquire us.

Catalog: UVCUR-365-8

Specifications

Model	UVCUR-365-8
Irradiation Area	Dicing Ring: 280 mm × 280 mm (Compatible with 8-inch tape frames/substrates)
Internal Chamber Height	52 mm
Emission Wavelength	365 nm(UV-LED)
Irradiance	8 mW/cm² or higher
Timer	Digital Timer (up to 9,999 seconds)
Safety Interlock	Door open detection sensor
Door Lock Mechanism	Solenoid lock system
Status Indicator	ignal Tower • Red: Interlock triggered  • Yellow: Standby • Green: Irradiating
Power Supply	AC 85 – 264 V (50/60 Hz)
Power Consumption	AC 100 V, 1 A (Standby: 10 W / Irradiating: 65 W)
Weight	Approx. 15 kg
Dimensions (W × D × H)	370 mm × 432 mm × 180 mm (excluding protrusions)

*Specifications are subject to change without prior notice.
